Method 6 Sampling Kit

$3,158.00 – $3,389.00

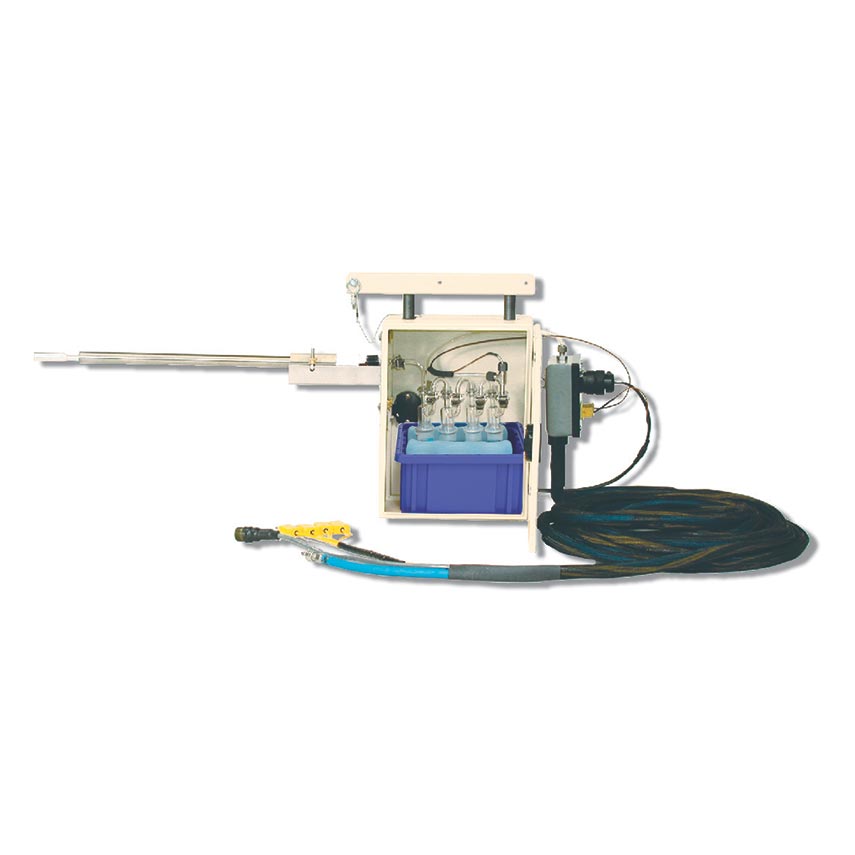

The SK-606 Method 6 Source Sampling Kit for VersaCase4 (SK-606) features the miniature VersaCase. Method 6 measures sulfur dioxide (SO2) emissions from stationary sources. A gas sample is taken from the stack, and separated from the mist. All applicable components are rated 110V / 60Hz.

SKU: Method 6 Sampling Kit Categories: ,

Note: The images shown are for illustration purposes only and may not be an exact representation of the product.

Description

Method 6 Kit Includes:

  • Glass lined heated probe assembly.
  • Midget glassware set.
  • Sample tray.
  • Nontoxic ice packs.
  • VersaCase4.
  • Probe Clamp.
  • Outlet with thermocouple well.
  • Connecting accessories.
  • Adapters.
  • Seals.
  • Umbilical cable to connect to the XC-60 or Model 623 Source Sampler Console.

**See Packing Lists under the “Documents & Software Links” tab for a full list of product numbers included.

Additional information

Weight 35 lbs
Dimensions 42 × 24 × 24 in
Voltage

120V, 240V
Amphenol Option

4 Pin Amphenol (Size 14S Shell), 5 Pin Amphenol (Bayonet)
