Mobile Demonstration Units
Mobile emissions labs tailored to the stack tester’s needs.

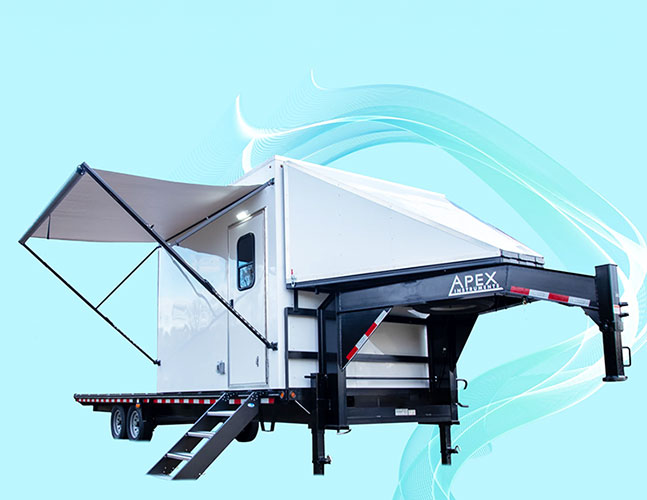

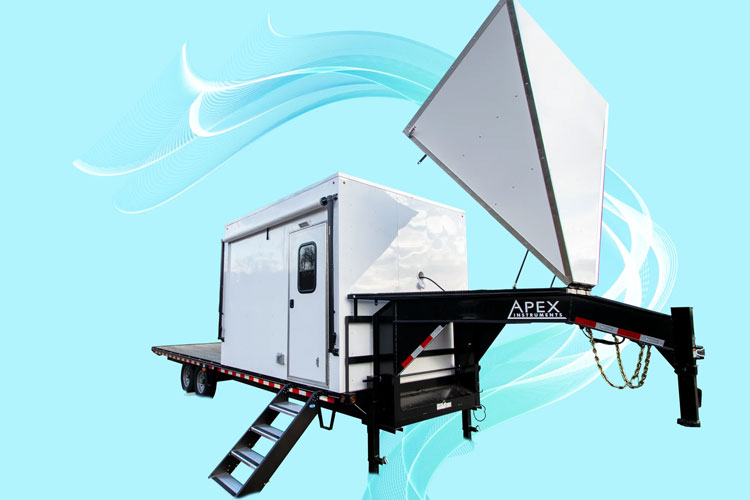

USDA Mobile Demonstration Unit
- TYPE: Modified Gooseneck
- CLIENT: United States Department of Agriculture
- TRAILER: 26 Ft Deck Over Straight Deck
- COMPLETED: February 2023
- 14,000 lb Gross Vehicle Weight Rating
- 10 in. x 12 lb I-Beam Frame
- Steel Frame Laboratory enclosure with Seamless Aluminum Roof
- Steel Frame Generator Enclosure
Gooseneck Trailer
- 2 5/16 in. Adjustable Coupler
- 3 in. Structural Channel Crossmembers
- 4 in. Double Channel Deck Frame Runners
- Rub Rail, Stake Pockets, and Pipe Spools
- (4) Standard 3 in. D-Rings
- Spare Tire and Mount
- Chain Box
- Diamond Plate Fender Plates
- Cambered Dexter Nev-R-Adjust Spring Axles
- Multi-Leaf Slipper Spring Suspension
- E-Z-Lube Hubs
- Electric Brakes
- (2) 12,000 lb. Drop-Leg Jacks
- Treated Pine 2 in. X 6 in. Floor
- 235/80R16 Radial Tires
- LED Lighting
- Molded/Sealed Harness with Resistors
- 7-Way Receiver Female Plug with Adapter

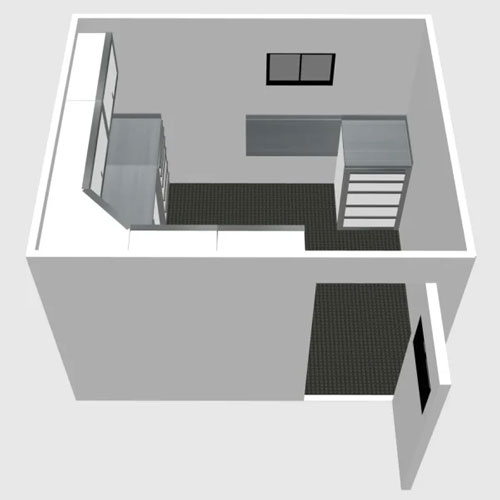

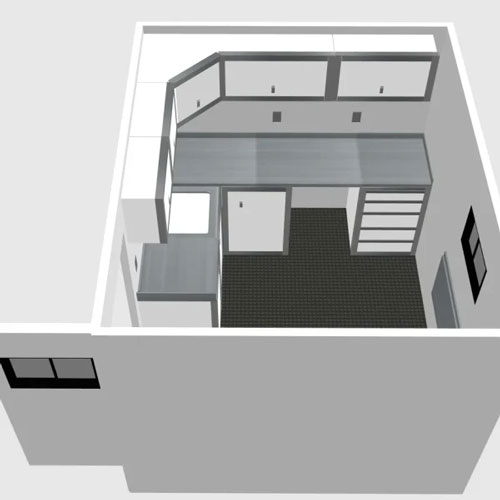

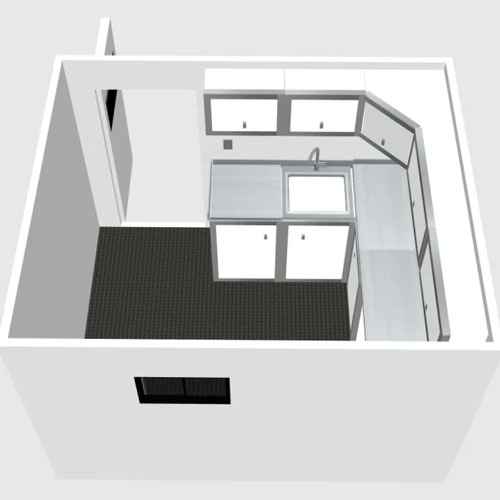

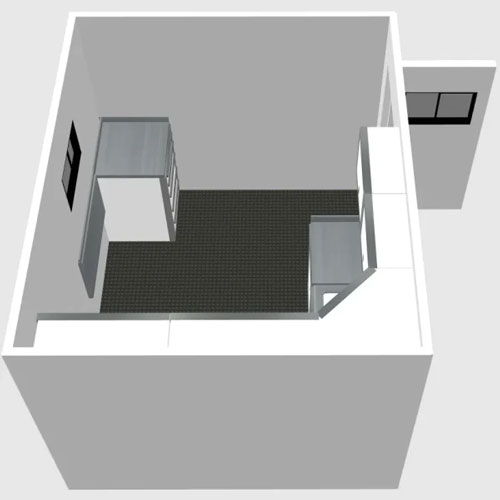

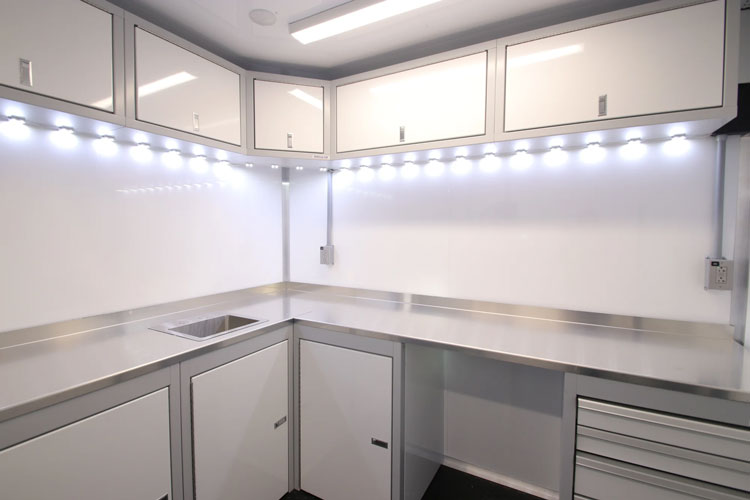

Laboratory Enclosure
- Aluminum Exterior Walls
- 15 in. X 24 in. Window with Screen
- 36 in. X 70 in. Door with Screen
- Rubber Coin Flooring
- Water Resistant Sub-Floor
- R10 Insulation Throughout
- One Set of Four Tread Steps
- 13,500 B.T.U. Rooftop AC unit
- MaxxAir Rooftop Vent
- 30amp Electrical Service Entry Package (30amp RV Shore Power Plug, Wiring, (2) 100aH Deep Cycle Batteries)
- Base & Wall Cabinets

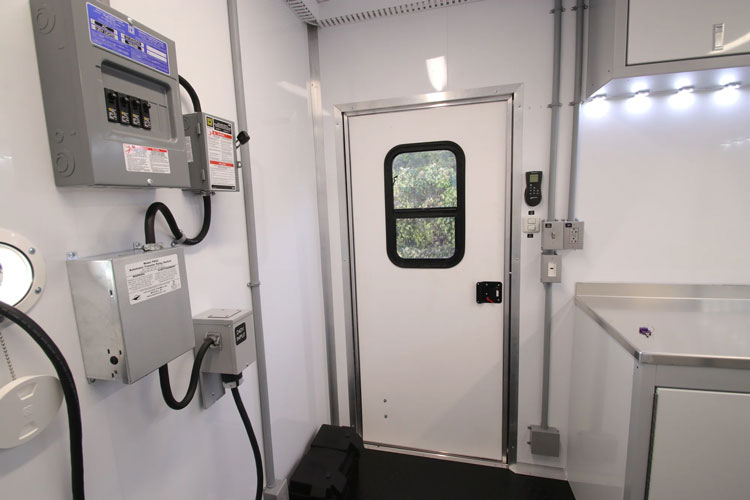

Electrical
- (4) 110V Interior GFCI Outlets
- Under Cabinet Lighting
- Ceiling Light
- 12V Power Outlet
Generator Enclosure
- Generator Door w/ Vent
- Fully Insulated R10 for Sound
- Generator Prep Package (30amp Auto Transfer Switch, Wiring, and Control Panel)
Contact Our Custom Trailers Division Today
With over 20 combined years of experience in the design and constructions of mobile units.
