Custom Vans
Mobile air monitoring labs tailored to the stack tester’s needs.

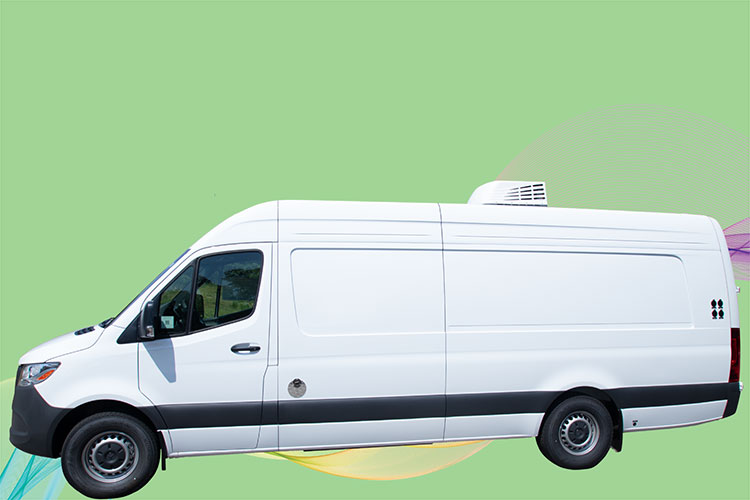

Mobile Air Monitoring Lab
- TYPE: Mobile Air Monitoring Lab
- VAN: Sprinter Van
- COMPLETED: September 2024
Utility Systems
- Site Electrical Power Interface System
- Electrical Distribution System
- Lighting System
- Air Conditioning System

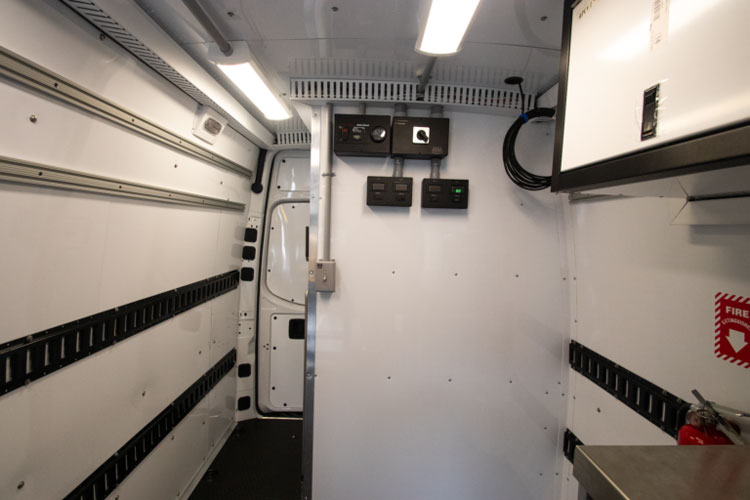

Interior Surface Coverings
- Coin Rubber Floor Interior
- High gloss white aluminum sheet wall/ceiling coverings
- Insulation installed in walls and ceilings
- T-slot tracks

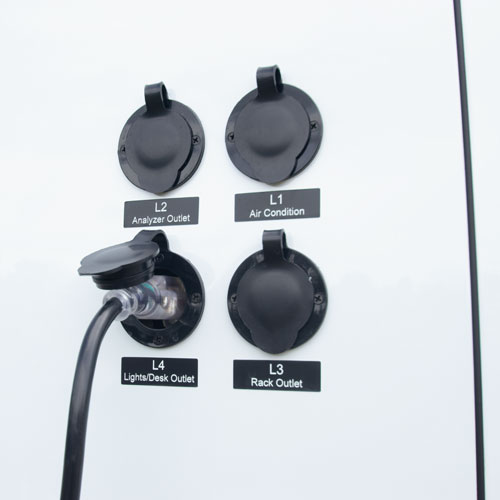

SEPIS & EDS Systems
Site Electrical Power Interface System
- 60 amps of 240V/120V power
- 3 analog voltmeters mounted above 240VAC power input
Electrical Distribution System
- Accept 240/120VAC single phase power from the SEPIS
- Distribute 120VAC on separate circuit breakers to the following circuits:
- Lighting system
- AC
- Instrument system
- Sample acquisition and conditioning system
- Rack mounted power strip
- Power strips at workstation
- 120V wiring installed using 12 gauge marine grade wire
- All terminations in junction boxes
- Covers installed on all junction boxes, outlet boxes and switch boxes
- All wiring concealed

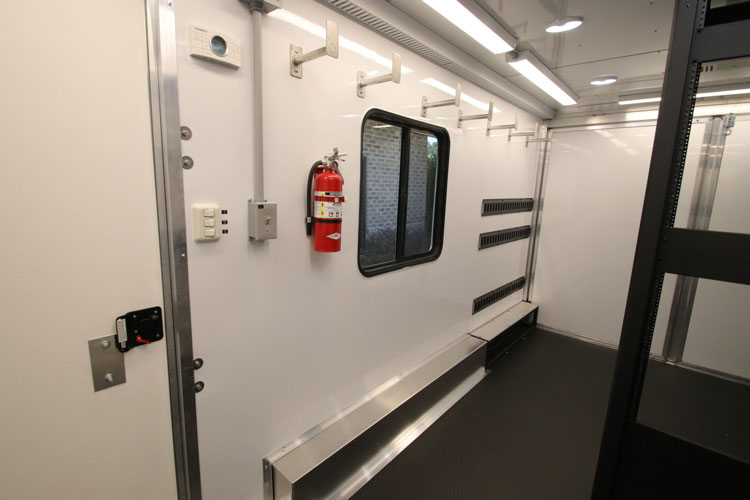

Lighting System
- Ceiling 120 VAC LED lighting
- Ceiling 12 VDC LED lighting
- Exterior 12 VDC LED lighting
- Lamp covers for all lights
- Separate switches for interior 120 VAC, interior 12 VDC and exterior 12 VDC lights

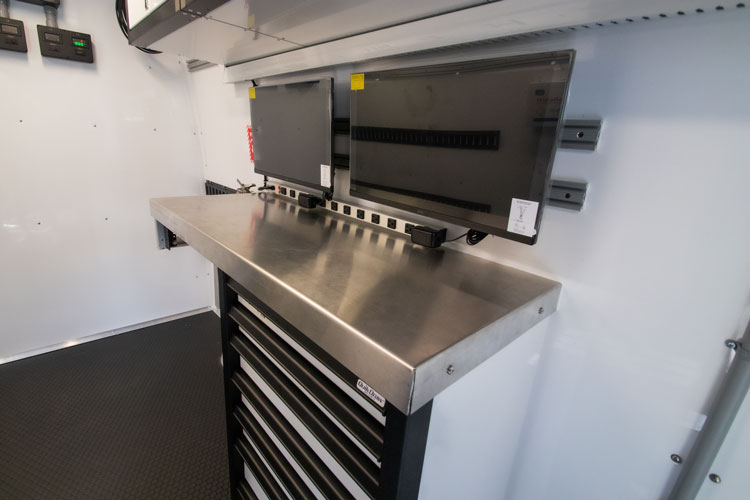

Interior Furnishings
- Military-grade aluminum, Moduline cabinets
- Stainless steel workbench countertop
- Two 27″ wall mounted monitors above van workstation
- Lowell equipment rack mounted on isolator baseplates
- 120V wiring installed using 12 gauge marine grade wire
