Custom Mobile Labs
Mobile emissions labs tailored to the stack tester’s needs.

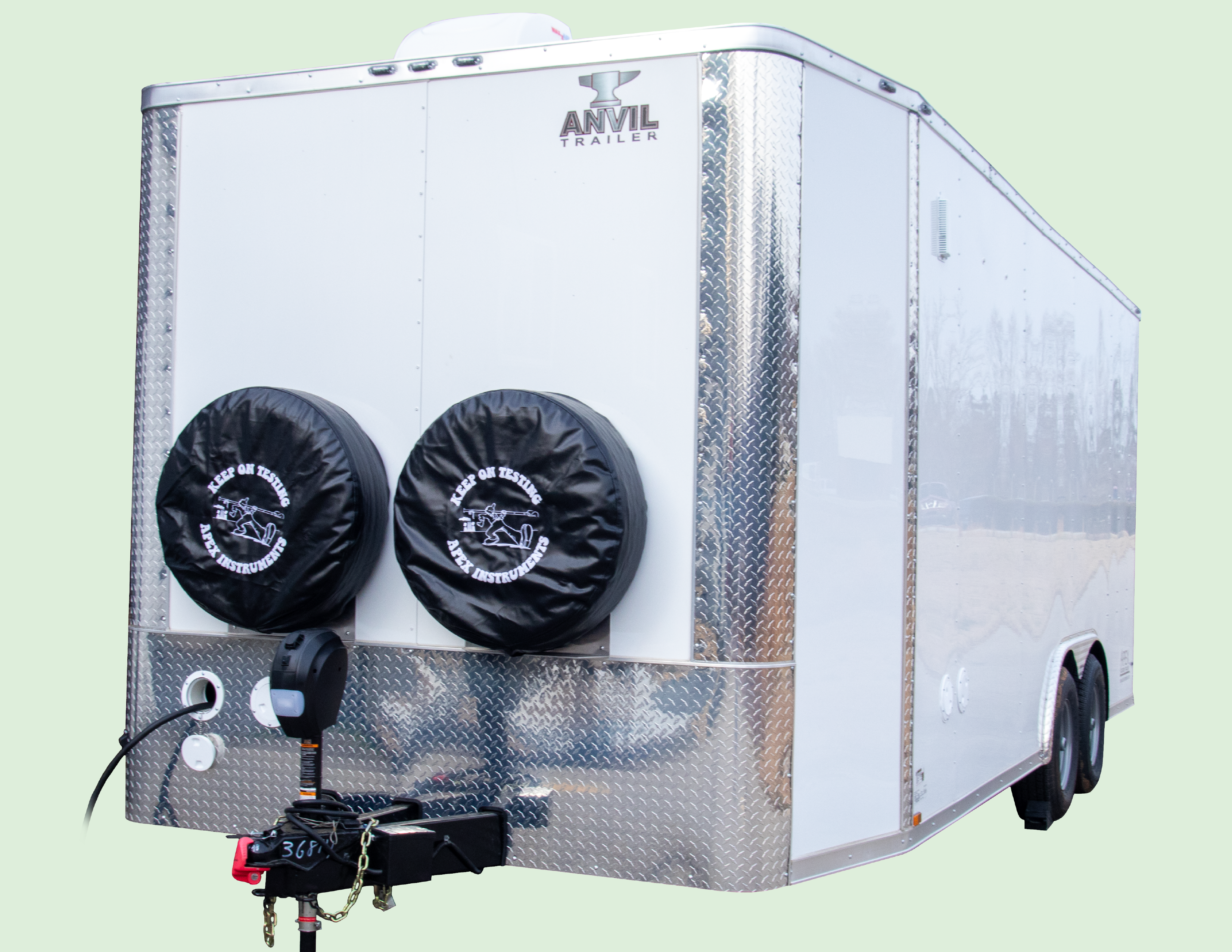

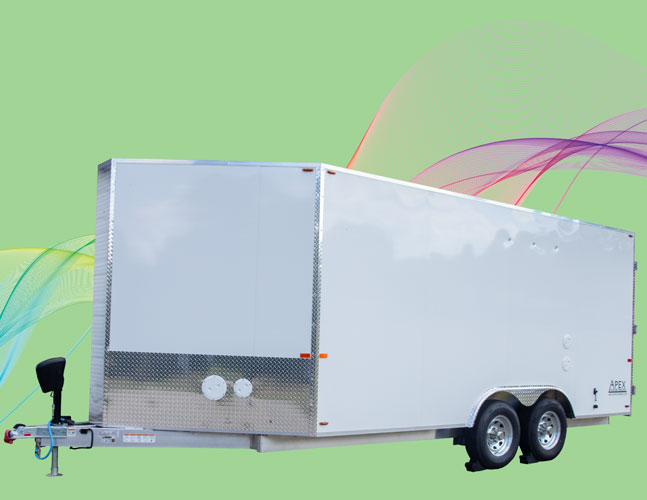

16′ Mobile Emissions Lab
- TYPE: Mobile Emissions Laboratory
- CLIENT: Montrose Environmental
- TRAILER: 16′ x 8’x 7 Aluminum Bumper Pull
- COMPLETED: June 2024
Trailer
- Main cabin & electrical/pump room
- Aluminum frame
- Seamless aluminum roof
- GVWR of 10,000 lbs
- Dual 5,000 lbs torsion brake axles
- 16″ wheels and radial tires(2) 7,000 lb.
- Two spare wheels and tires
- Electric tongue jack powered by 12 VDC battery

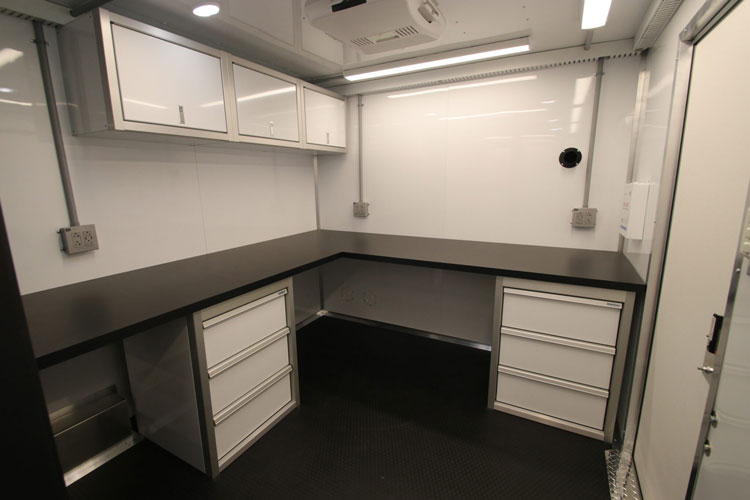

Interior
- Rubber coin grip PVC flooring
- 2″ foam board insulation
- Two rooftop RV type air conditioners
- High gloss white aluminum sheet wall coverings
- Moduline military grade aluminum wall cabinets and toolboxes
- Black laminate, L-shaped countertop
- 2 Lowell analyzer racks
- Custom aluminum baseplates w/ isolator springs (Attaches analyzer rack to floor)
- First Aid Kit
- Combination Smoke/CO Detector
- Fire Extinguisher

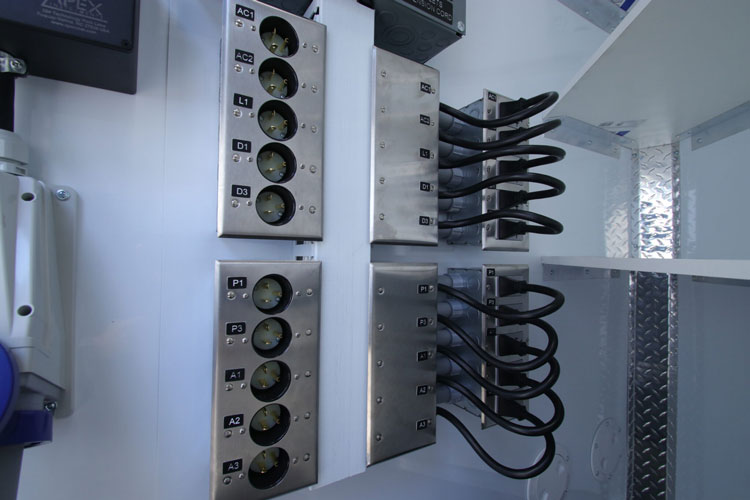

Site Electrical Power Interface System
- 480 Delta V three-phase power or 208Y V three-phase power and output 208Y/120 V three-phase power to the EDS
- Three-phase-step-down transformer
- Three analog voltmeters mounted above 480 Delta V power input
- 600V/30 amp fusible safety disconnect
- Four analog voltmeters mounted above the 208Y/120V power input
- 600V/60 amp non-fusible double throw safety switch
Lighting
- Ceiling 120 VAC LED lighting
- Ceiling 12 VDC LED lighting
- Exterior 12 VDC LED lighting
- Lamp covers for all lights
- Separate switches for interior 120 VAC, interior 12 VDC and exterior 12 VDC lights
Contact Our Custom Trailers Division Today
With over 20 combined years of experience in the design and constructions of mobile units.
