Custom Gooseneck Mobile Labs
Custom Gooseneck Mobile Labs tailored to the tester’s needs.
Project
- TYPE: Mobile Emissions Laboratory
- CLIENT: Alliance
- TRAILER: 28′ x 8.5′ Enclosed Gooseneck
- COMPLETED: August 2020

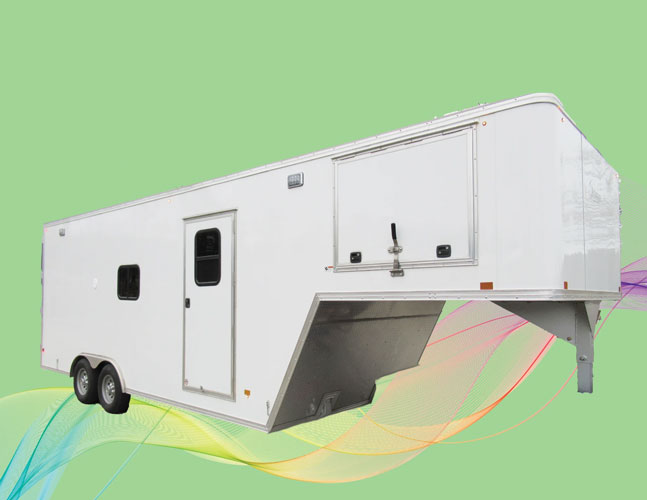

28 Ft Gooseneck Mobile Emissions Lab
- 7’ 6” Interior Height (12” Extra)
- Foam Board Insulation in Walls & Ceiling
- Dual 3,500 lb. Torsion Axles
- Wall Mounted E-Track
- (3) 10” X 10” Access Doors
- Rear Barn Doors
- White Aluminum Ceilings and Walls
- Double Insulated Ceiling, Walls and Floor

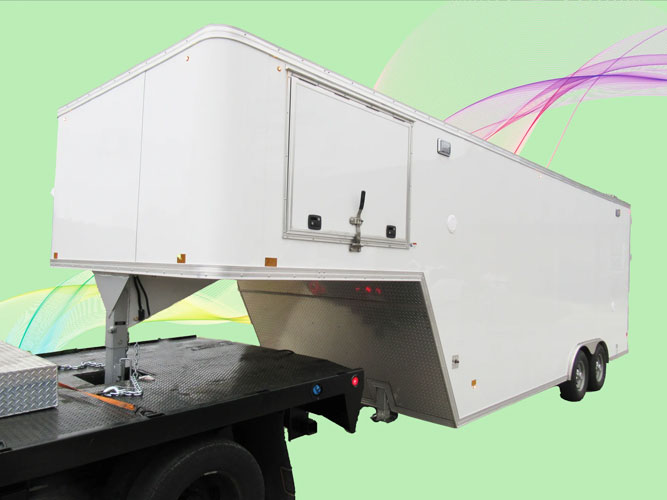

Trailer
- (2) 7,000 lb. Dexter Brand Torsion E-Z Lube Axles
- Hydraulic Landing Gear
- 5,000 lb. Scissor Jacks
- (2) 36” X 48” Baggage Doors (Gooseneck Front)
- Four Way Electric Brakes
- LED tail Lights and Clearance Lights
- (5) 12V LED Dome Lights
- 36” Recessed Curbside Door w/ RV & Bar Locks, Window and Step Well
- Steel TUBE Main Frame Upgrade (2”x6”)
- TUBE Rear Bumper
- 16” On Center Floors, Walls and Ceilings
- One Piece Seamless Aluminum Roof
- ¾” Plywood “Walk-On” Roof
- Recessed E-Track in Walls
- (2) Spare Radials
- Coin Rubber Floor Interior
- ATP Interior Trim & Wheel Wells

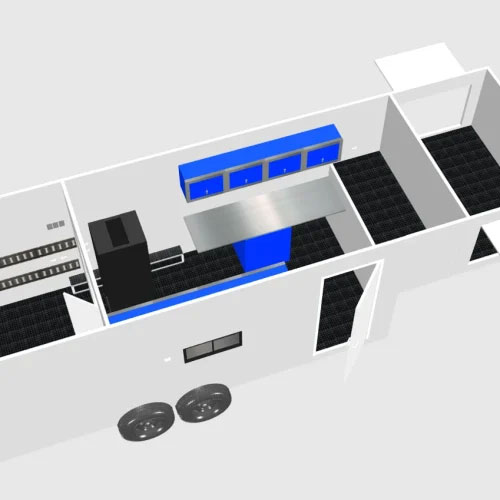

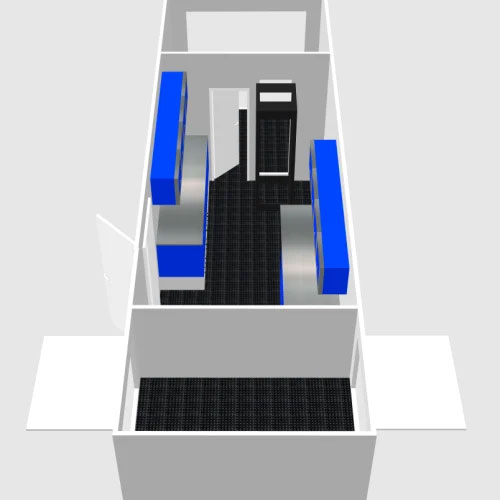

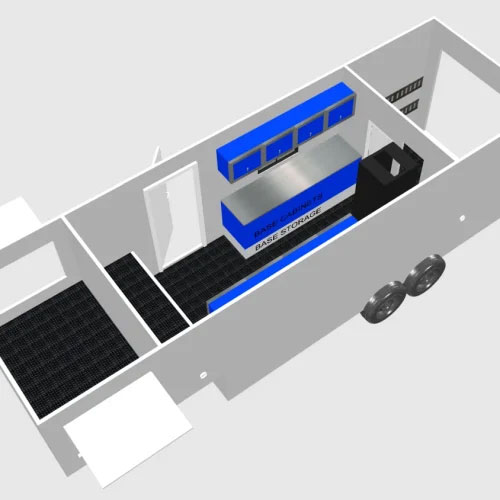

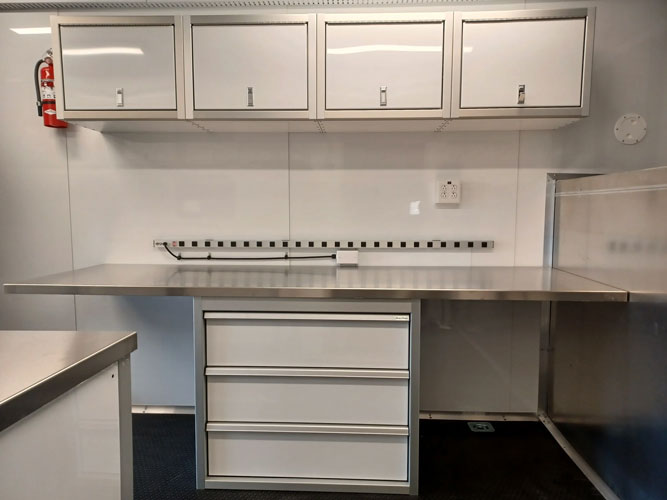

Interior
- Premium Fingered Raceway for Tubing
- (4) Wall Cabinets
- 40U Analyzer Rack
- Custom Aluminum Baseplates w/ Isolator Springs (Attaches Analyzer Rack to Floor)
- Custom Aluminum Wall Bracket w/ Isolator Springs (Attaches Analyzer Rack to Wall)
- First Aid Kit
- Combination Smoke/CO Detector
- Fire Extinguisher

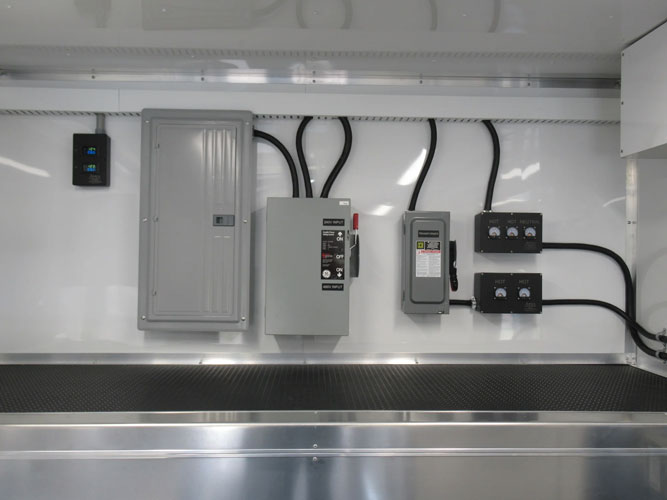

Electrical
- 15 Kw 480VAC Single Phase Step-Down Transformer
- 480VAC Electrical Entry
- 240VAC Electrical Entry
- 100 ft. 6/3 AWG Power Cord w/ 50amp Plug
- 100 ft. 6/4 AWG Power Cord w/ 50amp Plug
- 50amp 480V Power Inlet w/ Voltmeters
- 50amp 240V Power Inlet w/ Voltmeters
- 60amp Double Throw Safety Switch
- 100amp Main Breaker Load Center w/ Electronic Voltmeters/Ammeters
- 20amp Breakers
- 120V Outlets on Individual Circuits
- (6) 4 ft. Overhead LED Lights LED Lights w/ Switch
- (2) 15,000 BTU Roof Mounted AC Units
- Overhead Exhaust Fan
Contact Our Custom Trailers Division Today
With over 20 combined years of experience in the design and constructions of mobile units.
